Data Visualization in Business Analytics: A Complete Guide
Business analytics relies on large volumes of sales, customer, financial, operational and marketing data, but raw numbers often make important patterns difficult to identify. Data Visualization in Business Analytics transforms complex datasets into clear trends, comparisons and performance insights.
Effective visualisation goes beyond aesthetics. It helps identify anomalies, compare business segments and examine relationships, while its accuracy depends on reliable data, appropriate analytical models and sound visual design.
READ MORE: Business Analytics vs Data Analytics
Data Visualization in Business Analytics as an Analytical Layer
What is data visualization in business analytics? It is the systematic representation of business data and analytical results through charts, graphs, dashboards, maps and interactive visual elements to support interpretation and decision-making.

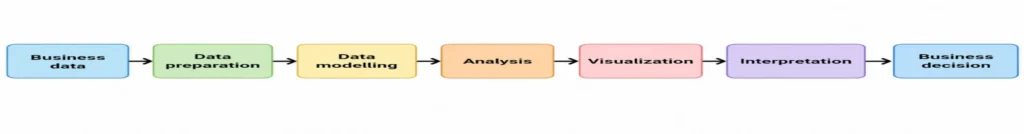

In a typical analytics environment, visualization appears after several technical stages. Data is collected from business systems, cleaned and transformed, organised into an analytical model, analysed using statistical or business intelligence methods and then presented visually. The visual therefore represents the output of an analytical pipeline rather than functioning as an isolated reporting element.
This distinction is important because visualization cannot compensate for incorrect data preparation. If duplicate transactions, inconsistent definitions or incorrect aggregations exist in the underlying dataset, even a professionally designed dashboard can communicate an inaccurate result.
READ MORE: Data Visualization That Works with Tables and Charts
Matching Visual Structure to the Business Question
The selection of visualization should begin with the analytical question rather than the appearance of the chart. A business analyst comparing regional revenue needs a different visual structure from an analyst examining the relationship between advertising expenditure and sales.
The analytical requirement determines whether the visual should emphasise comparison, trend, distribution, relationship, composition, geography or deviation from a target. Choosing the wrong representation can hide important variation even when the underlying calculations are correct.
| Analytical requirement | Suitable visualization | Business application |
| Category comparison | Bar or column chart | Compare products, regions or departments |
| Time-based movement | Line chart | Monitor revenue, demand or costs |
| Distribution | Histogram or box plot | Examine variation and outliers |
| Variable relationship | Scatter plot | Analyse sales and advertising relationships |
| Part-to-whole comparison | Stacked chart | Examine contribution by category |
| Geographic pattern | Choropleth or symbol map | Compare regional performance |
| Target monitoring | KPI or bullet chart | Compare actual versus target |
| Process variation | Control chart | Monitor manufacturing or service processes |
The types of data visualization should therefore be selected according to the structure of the data and the decision that needs to be supported. A line chart may clearly communicate monthly revenue movement, whereas a scatter plot would be more appropriate for examining whether customer income is associated with purchase value.
Statistical Patterns Become Visible Before Formal Modelling
Visualization supports exploratory data analysis by revealing patterns that summary statistics may hide, such as skewness, outliers and differences between customer segments. Scatter plots can show potential relationships between variables, while histograms and box plots help examine distributions and variation.
These observations can guide later statistical analysis by indicating possible transformations, unusual observations or non-linear relationships. However, visual association does not establish causation; observed patterns should be examined further using appropriate statistical tests.
Business Dashboards Connect KPIs with Diagnostic Analysis
A business dashboard should function as a decision interface rather than simply a collection of charts. Its purpose is to place the most important performance indicators in a context where users can identify changes and investigate their potential causes.
A sales dashboard, for instance, may display revenue, gross margin and target achievement at the top level. Supporting visuals can then show regional performance, product contribution, customer segments and monthly trends. This creates a hierarchy between high-level monitoring and detailed investigation.
An effective dashboard should also distinguish between descriptive monitoring and diagnostic analysis. A KPI can tell management that revenue has declined, while filtering and drill-down can help determine which region, product or customer segment contributed to the decline.
Interactive Visualization Moves from Symptoms to Root Causes

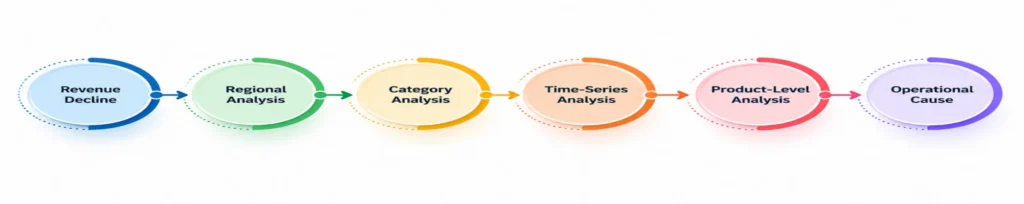

Static reports show predefined metrics, whereas interactive visualisation enables users to investigate changing business conditions through filtering, cross-highlighting and drill-down. For example, when a retailer’s monthly revenue falls from ₹4.8 crore to ₹4.2 crore, the dashboard can move the analysis beyond the ₹60 lakh decline by identifying the affected region and product categories.
Time-series analysis can then establish when the decline began, while product-level analysis can identify the high-volume products most affected. This makes Data Visualization in Business Analytics useful not only for detecting performance changes but also for tracing them to an operational cause.
Time-Series Visualization Separates Trend, Seasonality and Anomalies
Business data collected over time can contain long-term trends, seasonal patterns, temporary fluctuations and unusual events. Time-series visualisation helps analysts distinguish these movements, while moving averages can reduce short-term noise and make underlying patterns easier to interpret.
Forecasting can combine historical observations with estimated future values and prediction intervals to communicate uncertainty. For example, consistently higher December sales may indicate seasonal demand rather than sustainable growth, which is important for accurate forecasting and inventory planning.
Data Quality and Aggregation Control Visual Reliability
The reliability of a visualisation depends directly on the reliability of the underlying dataset. Missing observations, duplicate records, inconsistent dates and incorrect joins can alter calculated metrics and create misleading patterns.
Data preparation should therefore include systematic validation before the dataset reaches the visualization layer. Important checks include:
- Missing-value and duplicate-record assessment
- Data-type and date validation
- Range and outlier checks
- Referential integrity between datasets
- Reconciliation of calculated totals with source records
Aggregation also requires careful attention. A dashboard showing average customer spending can hide substantial differences between customer groups if the distribution is not examined. Similarly, calculating a monthly KPI from incorrectly duplicated transactions can produce a seemingly precise but fundamentally incorrect result.
Metric definitions should therefore be documented. Terms such as revenue, active customer, conversion rate and profit margin should have consistent calculation rules across dashboards and reports.
Visual Encoding Can Strengthen or Distort Analytical Meaning
Visual encoding directly affects how users interpret numerical differences. Position along a common scale generally supports accurate comparison, while colour can classify data or highlight important exceptions.
However, several design choices can distort interpretation:
- Excessive colour can increase cognitive load.
- 3D effects can make quantitative comparisons harder.
- Too many data labels can overcrowd the visual.
- Truncated axes can exaggerate relatively small differences.
- Poorly designed dual-axis charts can create misleading relationships between variables.
- Inconsistent scales or units can make comparisons inaccurate.
Effective visualisation should therefore use consistent scales, meaningful labels, appropriate units, logical ordering and clearly defined colour meanings. The priority should be analytical accuracy rather than visual decoration.
Large Data Volumes Change Visualization Performance
Large business datasets create performance challenges because dashboards may need to process millions of transactions. Aggregation, filtering, sampling and data-reduction techniques help maintain responsive visualisations without displaying every record simultaneously.
Performance also depends on the underlying data model. Poor relationships, unnecessary fields and inefficient calculations can increase query times, so high-volume visualisation should balance analytical detail with performance, using aggregated indicators with drill-down when detailed investigation is required.
Building a Decision-Ready Visualization Workflow
A technically robust visualization workflow begins with the business problem rather than the chart library or dashboard template. The analyst must first identify what decision the visualization is intended to support and which measures provide evidence for that decision.
The workflow can then be structured around the following stages:
- Define the business decision or analytical problem.
- Identify the required dimensions and measures.
- Prepare and validate the underlying data.
- Build the analytical data model.
- Apply appropriate statistical or analytical methods.
- Select visual encodings based on the analytical question.
- Add filtering and drill-down where diagnostic investigation is required.
- Validate calculations and visual interpretation.
- Test the dashboard with its intended users.
- Monitor data refresh, performance and metric consistency after deployment.
This approach prevents visualization from becoming a purely cosmetic reporting activity. It connects the final visual output with the analytical assumptions and data processes that produced it.
Data Visualization as the Decision Layer of Business Analytics
The real value of Data Visualization in Business Analytics lies in connecting analytical results with business interpretation. A dashboard becomes useful when users can move from a high-level performance indicator to the underlying pattern, segment or operational factor responsible for a change.
Reliable visualization therefore requires more than knowledge of chart types. It requires understanding data quality, statistical distributions, aggregation, time-series behaviour, analytical modelling, visual encoding and user decision requirements.
When these elements are integrated properly, visualization can transform complex business datasets into decision-ready evidence. The strongest analytical dashboards do not simply answer “What happened?”; they help users investigate where the change occurred, how it developed and which business factor requires attention.
Turn Business Data into Actionable Insights
Effective Data Visualization in Business Analytics requires more than selecting attractive charts. It involves data preparation, analytical modelling, appropriate visual design and clear interpretation of business results. A well-structured visualization can help organisations identify performance gaps, uncover patterns and make faster, evidence-based decisions.
If your organisation needs professional data analytics, dashboard development or data visualization support, our team can help transform complex business data into clear, decision-ready insights. Explore our data analytics services to strengthen your organisation’s analytical capabilities.
Book a free consultation for appointment
Email us at : grow@simbi.in
Frequently Asked Questions
1. What is data visualization in business analytics?
It is the visual representation of business data and analytical results through charts, dashboards, maps and interactive reports to support interpretation and business decision-making.
2. What are the main types of data visualization?
Common types include bar charts, line charts, scatter plots, histograms, box plots, maps, KPI visuals, control charts and interactive dashboards. The appropriate type depends on the analytical question and data structure.
3. Why is visualization important in business analytics?
Visualization helps analysts identify trends, relationships, distributions, anomalies and differences between business segments more efficiently than examining large tables of numerical data.
4. Which tools are used for business data visualization?
Common platforms include Microsoft Power BI and Tableau, while Python libraries such as Matplotlib and Plotly provide programmatic control for customised analytical visualisations.
5. What makes a business visualization effective?
An effective visualization uses reliable data, clearly defined metrics, an appropriate visual encoding and a design that directly supports the intended business decision.
